360Starlight

IP68 Outdoor VR Live Streaming Camera
Feature 2.PNG

Real-time in-camera transcoding

Real-time in-camera Stitching

Fully Enclosed Liquid Colling

Back-illuminated Image Sensor

Feature 1.PNG

Gigabit POE

Power Supply

8K Resolution Live Streaming

IP68

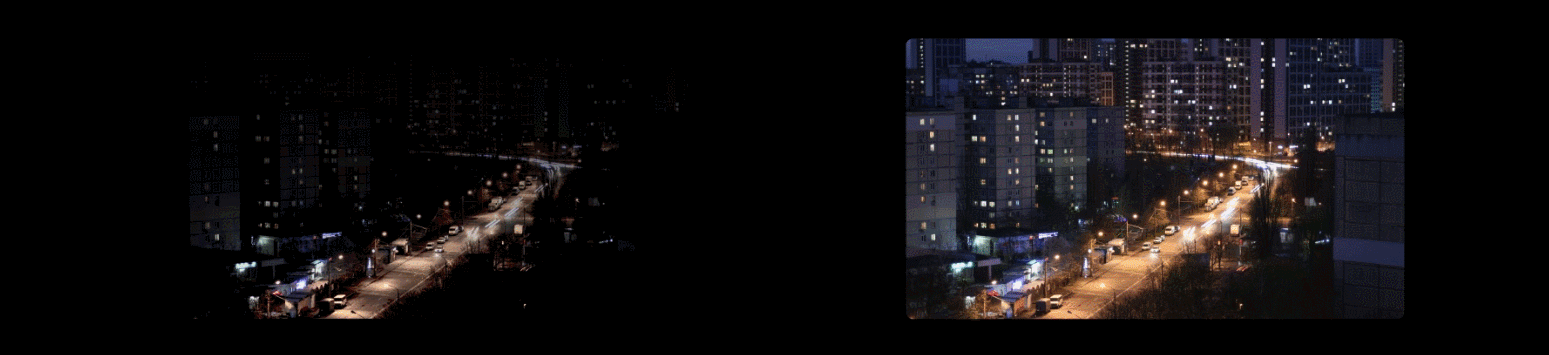

Starlight CMOS

Captures Every Pixel in the Dark

With 4 back-illuminated CMOS image sensors, 360Starlight is able to capture high image/video quality in the visible-light and near infrared light regions.


360Starlight

Other 360 Camera

8K Resolution Live Streaming Quality

Real-time in-camera Transcoding, Stitching & Pushing

1/1.8" sensor, pixel size 2.0μm, non-spherical fisheye lenses, 10bit, 24/7 live streaming, IP68, etc. all these features empower 360Starlight to be the most wanted 360 camera for your 360 live streaming business and video production. Help you to be a shining star in the 360 video production circle.

Sample Video by 360Starlight, Shanghai, China

360Starlight has a powerful built-in processor that supports real-time stitching, transcoding and pushing for 4 streams of 8K VR live streaming. Streamers are now able to create two stream feeds (both 4K & 8K) to satisfy all types of viewing demand of the audience with multiple devices, saving the complexity and expense of thiird-party transcoding and cloud computing.

Better & Proven Protection

With its fully sealed aluminum body and lens-level water proof design, 360Starlight can be used in most of weather conditions without the need for extra protection. It has passed the test for IP68 and the tests (military grade) for high/low temperature, vibration, impact and constant humidity.

Dome Waterproof Solution

Poor Abrasion Resistance

Easy-to-age in outdoor environment

Semi-Dome Waterproof Solution

Inconsistent curvature of the lens and the dome covered, undermining the imaging quality

Lense-level Waterproof Solution

Lens-level waterproof structure design

Clearly present the scene


Dome/Semi-dome Waterproof Solution

no dome.png

Lense-level Waterproof Solution

24/7 Operation Capability with Remote Control

Reliable and countable for long-time operation. The only one of its kinds supports continuous live streaming.

360Stalight's professional performance is fully released with TECHE CENTER remote control system, including its parameter adjustment system and real-time preview function.

Teche Control.png

Power Over Ethernet (POE)

360Starlight is POE-enabled, requires only one cable for both power supply and Internet connection. Allowing higher flexibility and lower cost & time required for installation of the camera, and improving the safety and reliability of the live streaming service.


Technical Specifications

Product Name: Teche 360Starlight



Lens: 4x190 F2.2 Fisheye lens

Sensor: 1/1.8"

Low illumination: Support

3D noise reduction: Support

Lens focal length: 2.3mm



Video & Image size: 7680*3840



Stream type: CBR



Main stream frame rate resolution: 7680*3840

Sub-stream frame rate resolution: 1920*960

Video compression standard: H264/H265



Video compression rate: 1-100Mbps



Audio compression standard: AAC



Audio compression rate: 320Kbps

Audio sampling rate: 48k

The internet supporting agreement: rtmp/rtsp/http IPV4/IPV6 TCP/UDP DHCP

Protection: IP68

Interface Protocol: 48K



WIFI Wireless standard: 802.11ac



Frequency Range: 5.765Ghz



Channel bandwidth: 40Mhz



Encryption: WPA2-PSK



Transmission rate: Up to867Mbps



Effective transmission distance: 15m



Network Interface: RJ45 1000Mbps



Working temperature and humidity: -30~45° 90% RH non-condensing



Audio input: USB



General Power supply: 12.6V/4A POE+



Power interface type: Aviation head



Device power consumption: 18W max



Material: Aviation aluminium alloy



Size: 172*68*68mm



Weight: About 1kg
